LTM Series Final Driving motors (LTM02-LTM60)
LTM Series Final Driving motors (LTM02-LTM60)
(Product No.: LTM Series Final Driving motors (LTM02-LTM60))
LTM Series Final Driving motors (LTM02-LTM60)

LTM Series Final Driving motors (LTM02-LTM60)

Shipping time:
4 Weeks 4 Weeks (abroad may vary)
Price on request
Ask about product
Description
The LTM series drive motor is a driving device that integrates a hydraulic motor and a gearbox, used for the applications for mobile machines

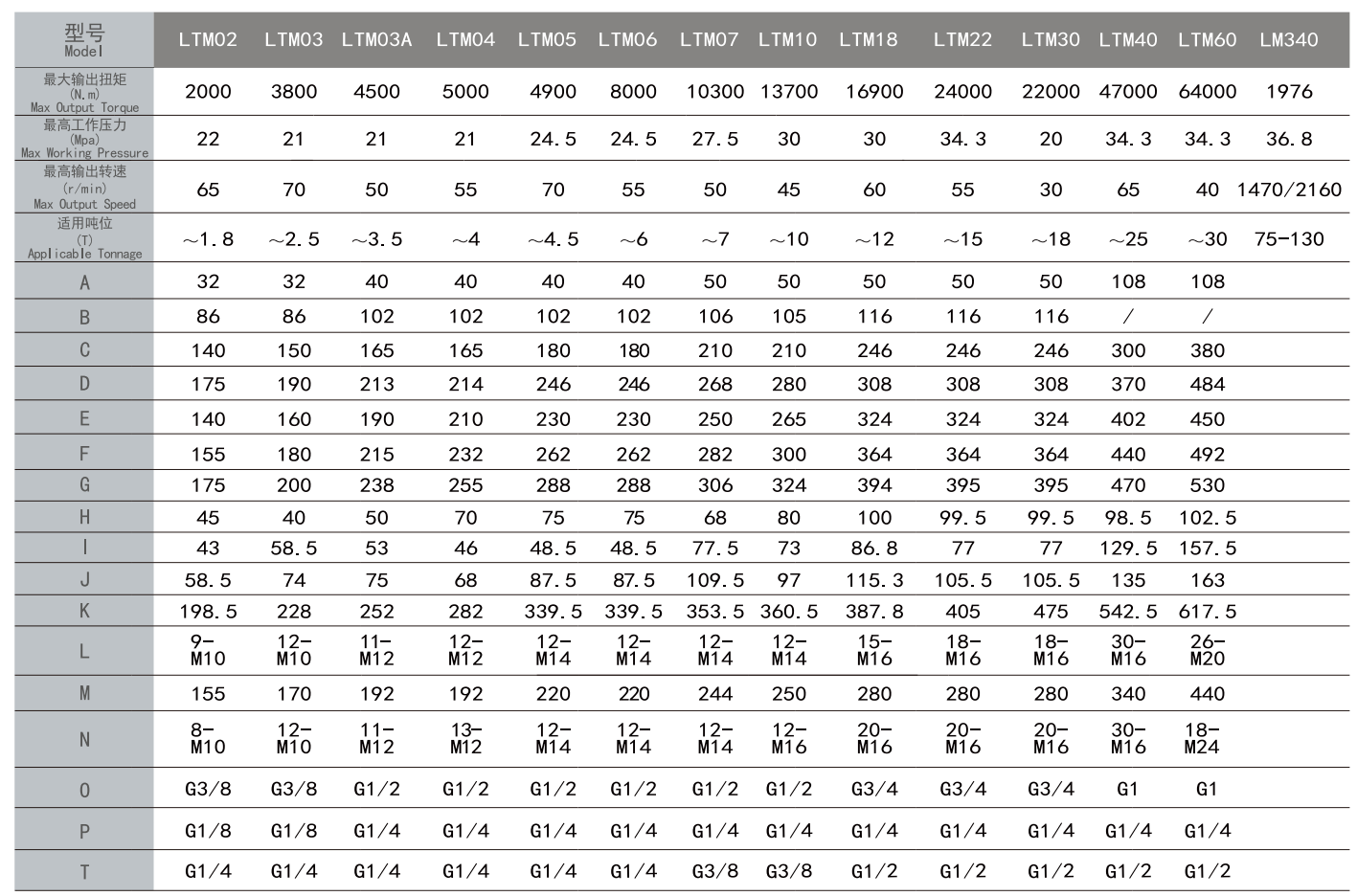

Technical parameters:
  • Drive torque: 2000NM~~64000NM
  • Maximum pressure: 210bar~368bar
  • Maximum speed: 70rpm
Product Features
  • Shell rotating type, large transmission ratio star reducer.
  • Slant disc axial piston motor, reducer, integrated design with built-in control valve and parking brake.
  • Dual speed control: Pilot control.
  • Optimization design of key components based on static hydraulic theory, resulting in high product efficiency, smooth operation, and low noise.
  • The design margin of key components is large, and international standards for long-life bearings and seals are referenced. The product has high reliability and long service life
