Mini External Gear Pump, Group 1 (0.8~8cm³/rev.)

Shipping time:
4 Weeks 4 Weeks (abroad may vary)
Price on request
Ask about product
Description

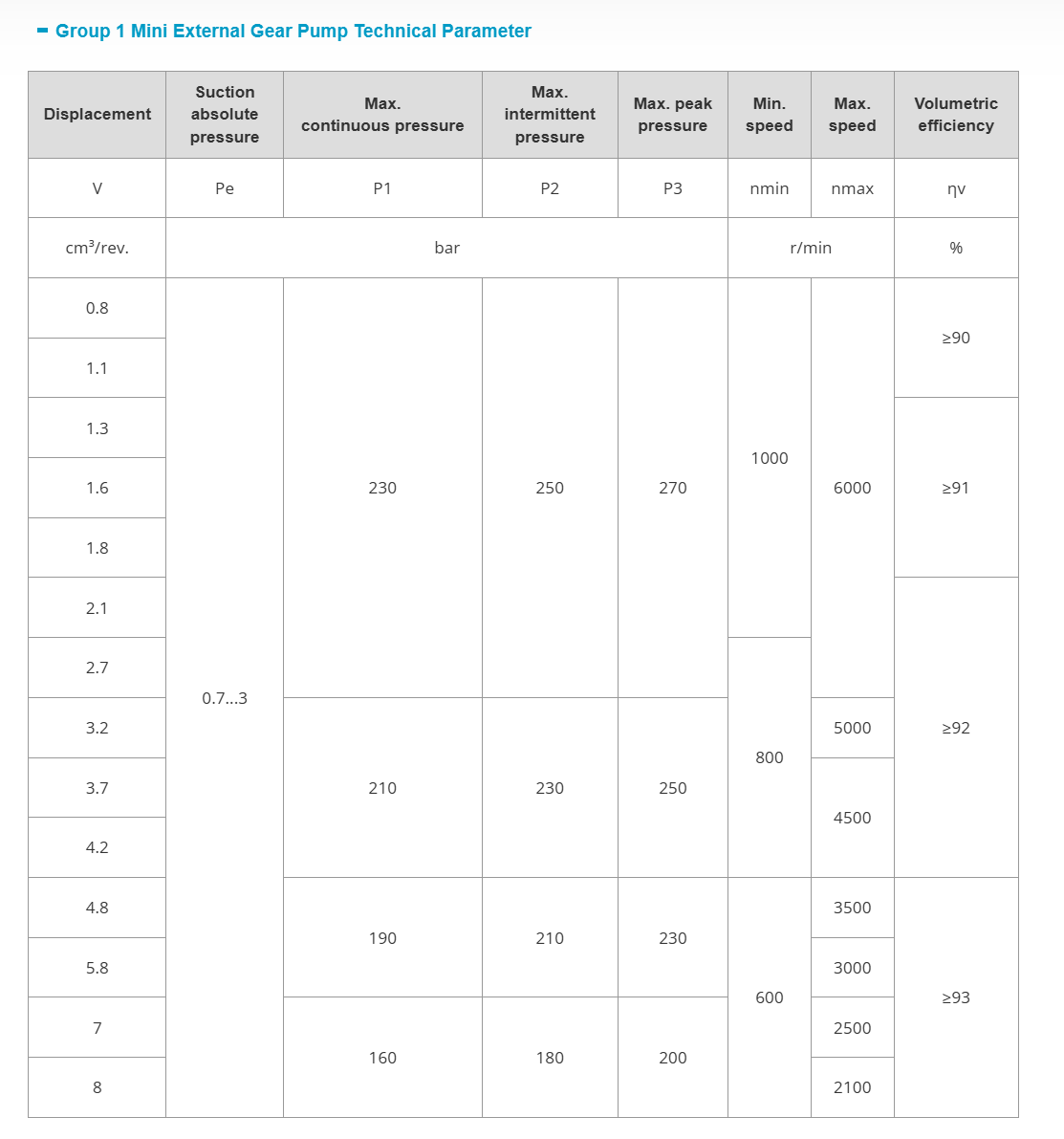

Technical Information
  • Displacement: 0.8~8cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S)
  • Min. speed: 600~1000r/min
  • Max. speed: 2100~6000r/min
  • Peak pressure: 200~270bar
Features
  • Low noise, high efficiency, long lifespan
  • High performance even at low speeds
  • Leakage-free shaft seal
  • Optional built-in overflow valve
  • Optional high-low pumps
  • Multiple oil port and shaft extension options available
Download: images/Datasheet aluminum gear pump grop 1 (1).pdf
