Radial Piston Motor HMCR03 (160CC--400CC)

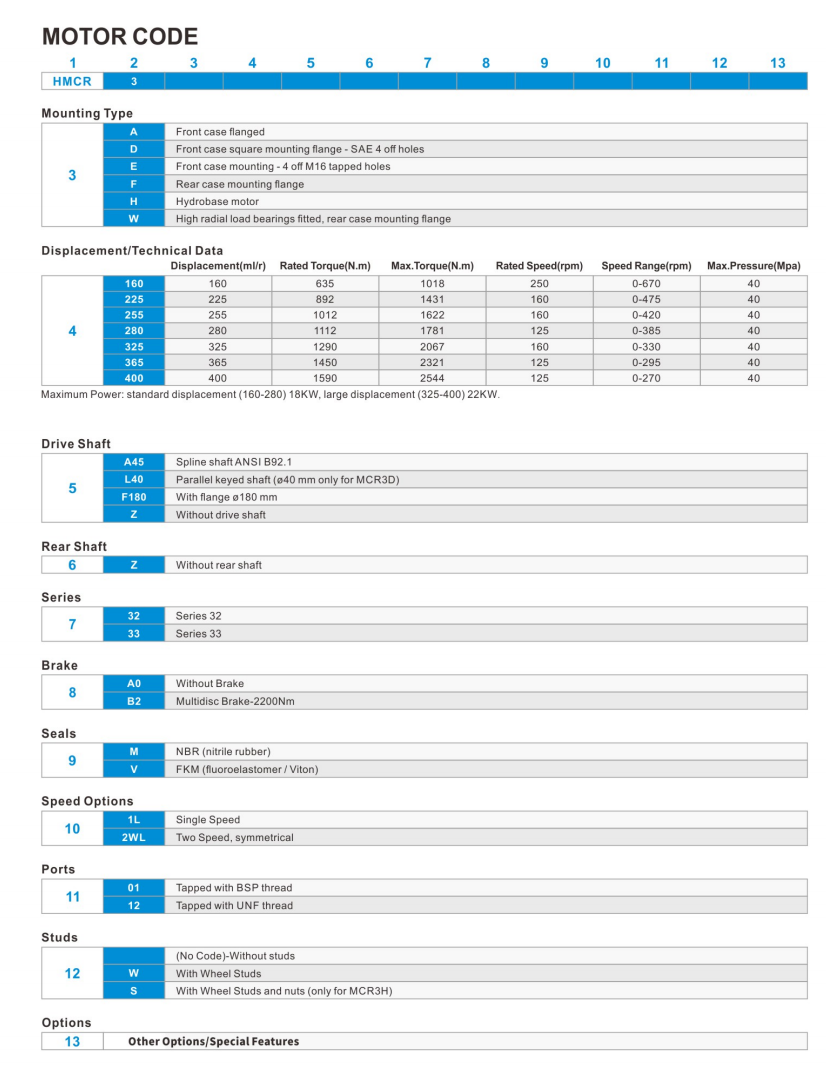

Techinical data:
Features
Available with:
- Size 160 to 400
- Differential pressure up to 400 bar
- Torque output up to 2300 Nm
- Speed up to 875 rpm
- Open and closed circuits
Features
- Compact robust construction
- High volumetric and mechanical efficiencies
- High pressure rating
- High reliability
- Low maintenance
- Smooth running at very low speeds
- Low noise
- Reversible
- Sealed tapered roller bearings
- High radial forces permitted on drive shaft
- Freewheeling possible
Available with:
- Bi-directional
- optional holding brake (multi-disc)or dynamic (drum) brake
- two speed
- Integrated flushing valve
- Speed sensor
