Swing Motors LSMN (LSMN10-LSMN250)

LSMN series swing motor is a swing device driven by a swashplate hydraulic motor and gearbox. The motor is equipped with  refill valve, parking brake, overflow valve and other accessories to ensure smooth and safe operation of the rotary device. Features: simple structure, small volume, low noise.

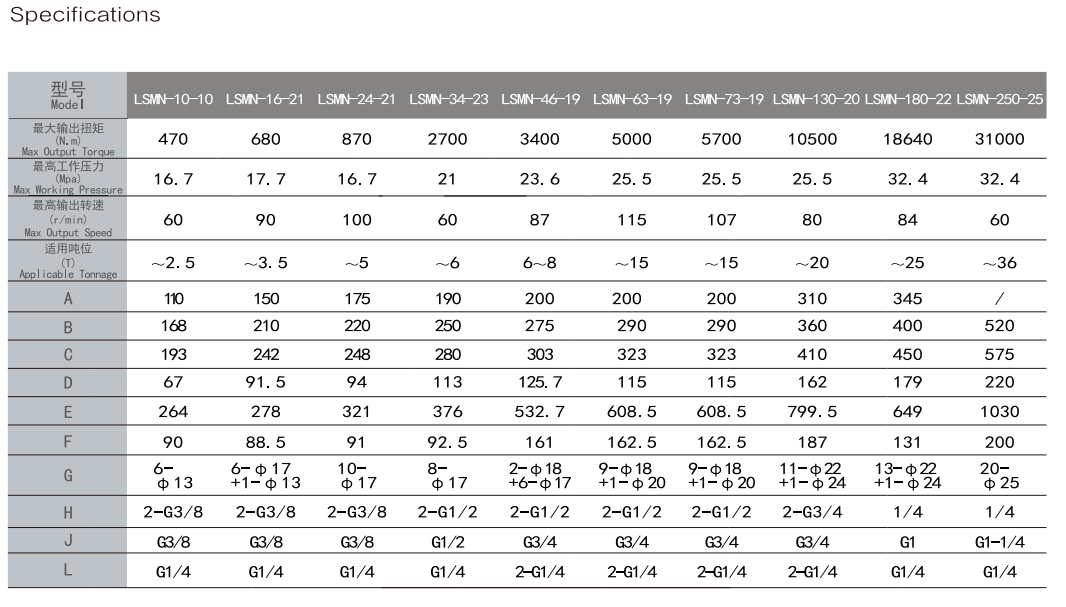

Technical data:

• Size:  from LSMN10-10 to LSMN250-25
• Max torque: from 470Nm to 31000Nm
• Max pressure: from 167baro to 328bar
• Max output speed: from 60rpm to 115rpm

Products feature:

• Axial  piston motor, oil refill valve, parking brake and overflow valve integrated design.
• Based on the theory of hydraulic static key components optimization design, product efficiency is high, smooth operation, low noise.
• The key component design margin is large, referring to long-life bearings and seals international standards, product reliability is high, long life
